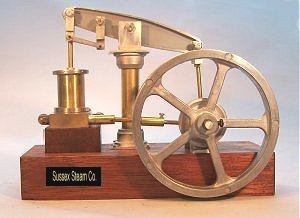

Beam Engine Kit Type A

This model can be run with live steam  using our new optional Steam Plant or
    it will run off compressed air at less than 2psi.

The Beam Type A in combination with our new Steam Plant is the replacement for our popular Beam Type S. Because of the new modular arrangement, you will not only have the advantage of an easy to build model but you will now have the option to purchase the Engine and Steam Plant separately.

The parts for the Beam A are ready made and
as such, no drilling, cutting, threading, shaping or soldering is required.

You will need a screwdriver, a pair of pliers,
a small hand drill (or pin vice) for drilling pilot holes in the wood plinth and some super glue to put the kit together. To set up the engine and make it run smoothly, you will probably need some fine emery cloth, maybe a small file to take off any rough edges and a couple of small drill bits (1mm,3mm and 3/16") for making pilot holes in the hardwood base and to clean up any holes that may need fettling.







A single acting slide valve engine.



Steam Regulator for Speed Control.



The finished engine is 160mm long x 65mm deep x 120mm high



Mounted on an hardwood base



Flywheel diameter 3.5". Bore 0.75". Stroke 1.0".



Comprehensive instruction booklet.



No machining required - can be built with a screw driver and a pair of pliers.



Kit Contents

The Beam Type A and Steam Plant Combination
Please note that the Steam Plant needs to be purchased separately



The new Beam A and Steam Plant kits are now available


Beam Type A Kit Price: £128.00
